| Model: |

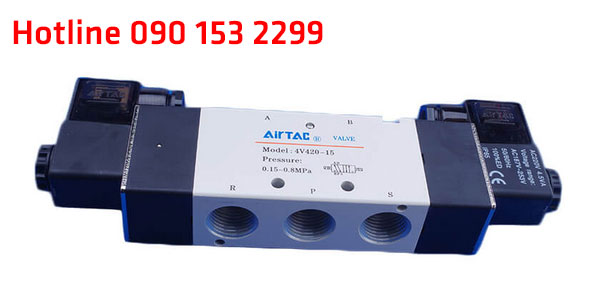

Van điện 4V430C-15 |
Van điện 4V430E-15 |
Van điện 4V430P-15 |
| Fluid: |
Air(to be filtered by 40μm filter element) |
| Acting: |
Internal pilot or external pilot |
| Port Size: |
In=Out=Exhaust=1/2″ |
| Orifice Size: |
30.0mm²(Cv=1.68) |
| Valve Type: |
5 Port 3 Position |
| Operating Pressure: |
0.15~0.8MPa(21~114psi) |
| Proof Pressure: |
1.5MPa(215psi) |
| Temperature: |
-20~70 |
| Material of Body: |
Aluminum Alloy |
| Lubrication: |
Not Required |
| Max Frequency: |
3 Cycle/Sec |
| Weight: |
770g |
| Standard Voltage: |
AC220V,AC110V,AC24V,DC24V,DC12V |
| Scope of Voltage: |
AC:±15% DC:±10% |
| Power Consumption: |
AC:3.5VA DC:3.0W |
| Protection: |
IP65(DIN40050) |
| Temperature Classification: |
B Class |
| Electrical Entry: |
Termina,Grommet |
| Activating Time: |
0.05 Sec and Below |
