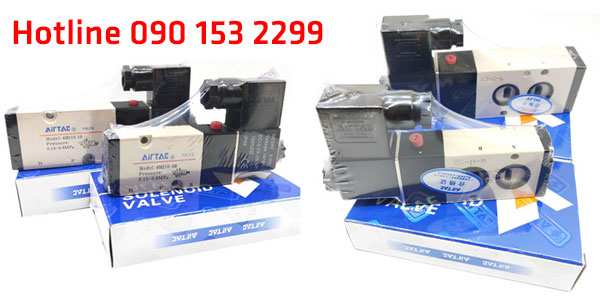

Van điện từ 4M210-08

Van điện từ 4M210-08

Van điện từ 4M210-08

Thông số kỹ thuật van điện Airtac 4M210-08

Model: Van điện 4M110-M5 Van điện 4M110-06 Van điện 4M210-06 Van điện 4M210-08 Van điện 4M310-08 Van điện 4M310-10
Van điện 4M120-M5 Van điện 4M120-06 Van điện 4M220-06 Van điện 4M220-08 Van điện 4M320-08 Van điện 4M320-10
Fluid: Air(to be filtered by 40μm filter element)
Acting: Internal pilot
Port Size: In=Out=M5 In=Out=1/8″ In=Out=1/8″ In=Out=1/4″ In=Out=1/4″ In=Out=3/8″
Orifice Size: 5.5mm²(Cv=0.31) 12.0mm²(Cv=0.67) 14.0mm²(Cv=0.78) 16.0mm²(Cv=0.89) 25.0mm²(Cv=1.40) 30.0mm²(Cv=1.67)
Valve Type: 5 Port 2 Position
Operating Pressure: 0.15~0.8MPa(21~114psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required
Max Frequency: 5 Cycle/Sec 4 Cycle/Sec
Weight: 4M110:450g 4M120:175g 4M210:220g 4M220:320g 4M310:310g 4M320:400g

đại lý 4M210-08 | đại lý 4M210-06 | đại lý 4M220-08

Coil Specification:

Item 4M110 4M120 4M210 4M220 4M310 4M320
Standard Voltage: AC220V,AC110V,AC24V,DC24V,DC12V
Scope of Voltage: AC:±15% DC:±10%
Power Consumption: AC:2.5VA  DC:2.5W AC:3.5VA  DC:3.0W
Protection: IP65(DIN40050)
Temperature Classification: B Class
Electrical Entry: Termina,Grommet
Activating Time: 0.05 Sec and Below
