Van điện 7V120-J04

Thông số kỹ thuật van điện từ 7V120-J04

đại lý 7V120-J04 | nhà phân phối 7V120-J04 | đại lý Airtac

Product Feature:

Electrical entry is terminal, horizontal and vertical insertion can freely switch.
Inner exhaust structure, which can collect pilot airflow, and then exhaust intensively from R, S port.
Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable, which can increase valve’s flow.
Threaded type and quick connector type are optional, and can integrate manifold to form valve group to save space.

Mã hiệu đặt hàng van điện Airtac:

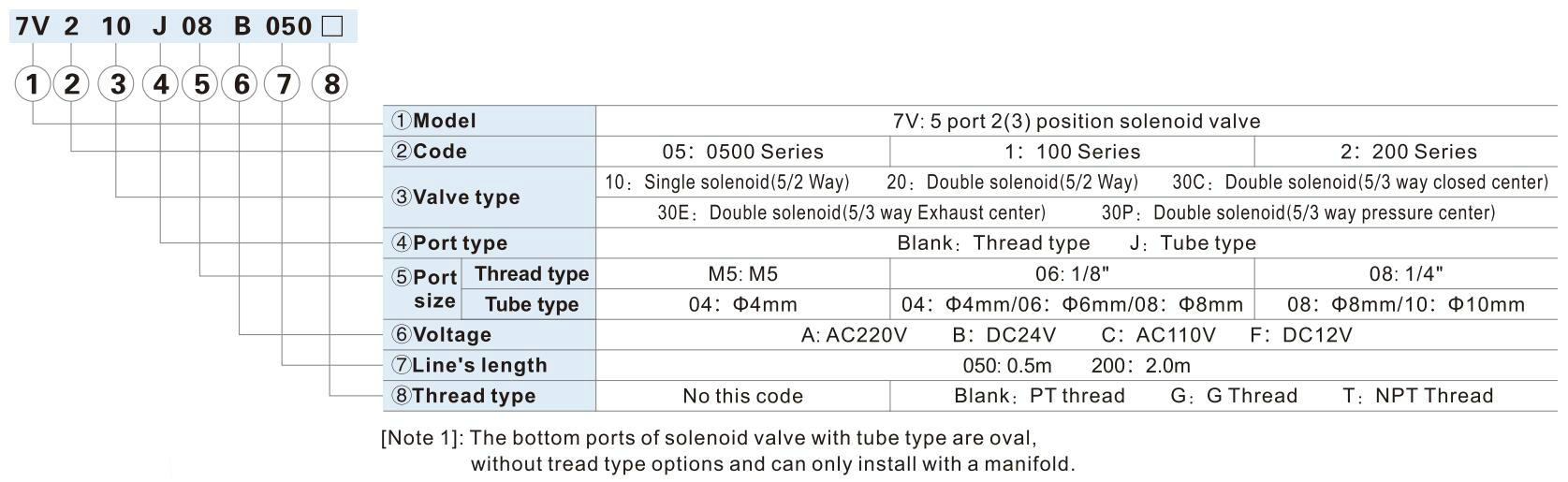

7v-ordering-code-11

Đặc điểm kỹ thuật van điện từ Airtac:

Mã hiệu			7V0510	7V0520	7V0530	7V110	7V120	7V130	7V210	7V220	7V230
Kích thước cổng	Thread Type		In=Out=Exhaust=M5			In=Out=Exhaust=1/8”			In=Out=1/4” Exhaust=1/8”
	Tube Type		Port A=Port B =Ф4			Port A=Port B =Ф4(or Ф6 or Ф8)			Port A=Port B =Ф8(or Ф10)
Orifice size( Cv value)			5.0mm²(0.28)		4.5mm²(0.25)	9.5mm²(0.55)		8.0mm²(0.48)	14.0mm²(0.83)		11.0mm²(0.61)
Weight			30g	45g	50g	80g	90g	100g	120g	135g	145g
Fluid			Air ( to be filtered by 40 µ m filter element)
Acting			Pilot
Operating Pressure		7V0530/ 7V130/ 7V230	0.2- 0.8MPa ( 29-114psi)
		Others	0.15- 0.8MPa ( 21-114psi)
Proof pressure			1.2MPa (175psi)
Material of body			-20 -70℃
Bôi trơn			Hợp kim nhôm
Exhaust type of pilot valve			Not required
Max. frequency			5 cycle/ sec		3 cycle/ sec	5 cycle/ sec		3 cycle/ sec	5 cycle/ sec		3 cycle/ sec

Coil Specification

Item	Specification
Standard voltage	AC220V	AC110V	DC24V	DC12V
Scrop of voltage	AC: +15%~ 10%		DC: ±10%
Power of consumption	1.1VA		0.9W
Protection	Dustproof
Temperature classification	F Class
Electrical entry	Terminal
Activating time	0.05 sec and below

Dimensions:

7v0510-110-210-dimensions-11
